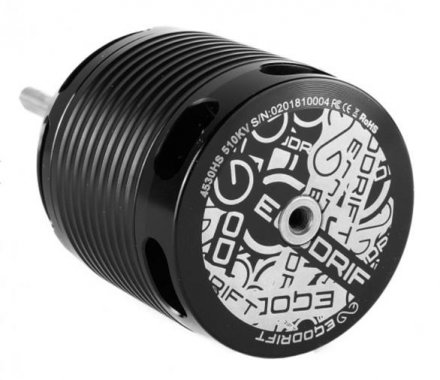

Tengu 4530HS / 510kV (12-14S)

EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4530HS Tengu comes with a kV rating of 510kV and fits all 700-800mm class helicopters, such as the XLPower Specter 700 & Protos, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado 700 or Gaui 700 (and various other models).

All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.

At peak the motor outputs 11500W of power (2s), the safe continous power rings in at 6000W. The continues current is 120 Ampere, with a peak value of 230A (2s). Set motor timing for this motor between 5 and 15 deegrees.

SPECIFICATIONS:

• Manufacturer: EGODRIFT
• Stator size: 4530
• Motor configuration: 12N10P
• Motor weight: 525g (17.25oz)
• Wire colour: Copper
• Motor wire type: High temperature copper wire
• Motor wire: 1.35mm
• Motor kV: 510 kV
• Motor shaft: Hardened Steel
• Shaft diameter: 6.0 mm
• Mounting hole pattern: 4xM4(30)
• Laser Design: EGODRIFT Stickerbomb
• LiPo cells: 12S, 14S
• Stator diameter: 45 mm
• Stator height: 30 mm
• Stator lamination: 0.15 mm (+)
• Body Length: 60.58mm (2.39 inch)
• Diameter: 56.40 mm (2.22 inch)
• Idle current: 3.7A
• Maximum Current: 120A (Peak: 230A / 2 seconds)
• Maximum Power: 6000 W (Peak: 11500W / 2 seconds)
• Internal resistance: 12 mOhm
• Connection: Wire / Gold plated plugs
