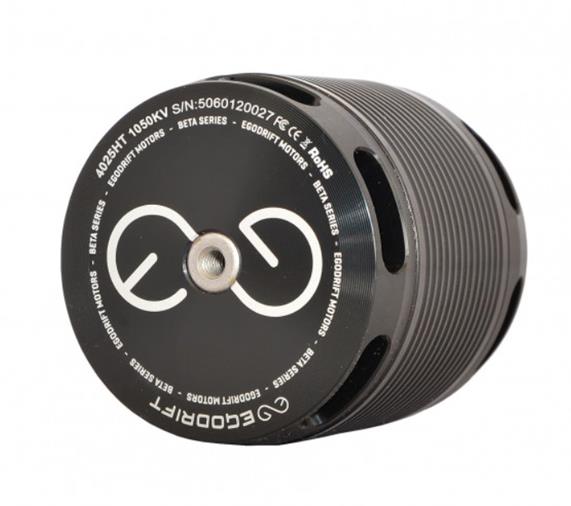

BETA Tengu 4025HT / 1050kV

Our EGODRIFT BETA Series is your chance to fly our latest brushless motor creations first and before they're officially released.

The 4025 HT motors offer yet faster reaction speed, increased power and efficiency and come with a 2.5mm higher base improved cooling.

Please note that the shafts available for the 40xx HS models will for this reason NOT fit the 40xx HT models. Shaft kits for the HT models are of course available as well (additional options to be added soon).

SPECIFICATIONS:

• Manufacturer: EGODRIFT
• Stator size: 4025
• Motor configuration: 12N10P
• Motor weight: TBA
• Wire colour: Copper
• Motor wire type: High temperature copper wire
• Motor wire: 1.4mm
• Motor kV: 1050 kV
• Motor shaft: Hardened Steel
• Mounting hole pattern: 2xM4(30) + 2xM3(25)
• Laser Design: BETA Series
• LiPo cells: 6S, 7S
• Stator diameter: 40 mm
• Stator height: 25 mm
• Body Length: 52.5mm (2.067 inch)
• Diameter: 49.6mm (1.95 inch)
• Idle current: TBA
• Maximum Current: TBA
• Maximum Power: TBA
• Internal resistance: TBA
